Overview

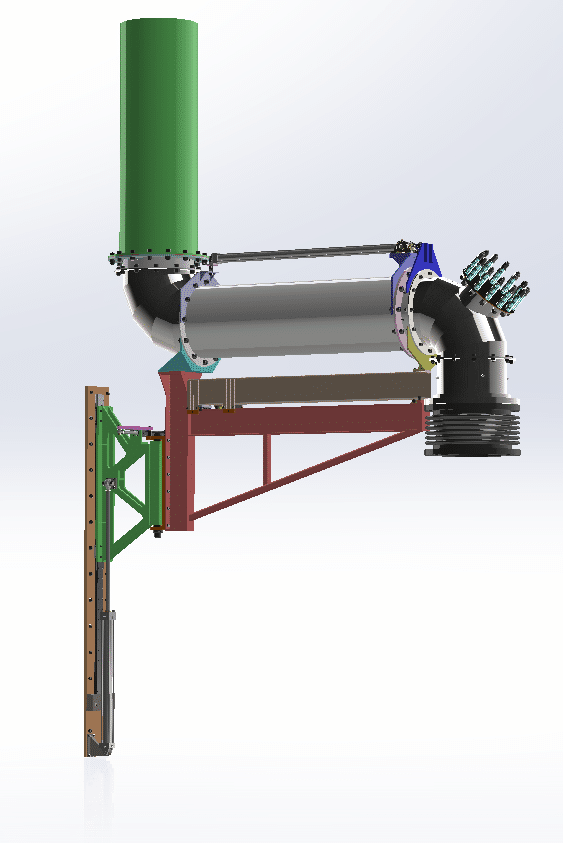

Articulating exhaust arms are custom engineered to accommodate facility design and achieve required reach and flow capabilities. Articulating motion is fully automated in all directions.

Key Features

• Custom engineered for reach and flow rate capability
• Stress analyzed for rigidity
• Flexible solutions tailored to specific unit under test and customer facility
• Integrated with test cell controls for automation
• Turn-key system delivery
• Designed for wide range of pipe diameters
• Fully controlled by hydraulic linear actuators
• Sealed at translation points allowing for controlled exhaust pressures
• Incorporated custom engineered explosion relief vents protect system from damage
